Central cracked specimen: FATIGUE#

Import necessary libraries#

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import pyvista as pv
import os
import sys

sys.path.insert(0, os.path.abspath('../../'))
plt.style.use('../../graph.mplstyle')
import plot_config as pcfg

results_folder = "results_compare_fatigue"
if not os.path.exists(results_folder):
    os.makedirs(results_folder)

Parameters definition#

Define material and specimen parameters

E  = 210  # Young's modulus (kN/mm^2)
nu = 0.3  # Poisson's ratio (-)
Gc = 0.0027  # Critical strain energy release rate (kN/mm)
Cparis = 10e-9  # Paris' Law constant C
m = 2.5          # Paris' Law exponent m
Ep = E / (1.0 - nu**2) # Plane strain modulus (kN/mm^2)

# %
# Specimen geometry
B = 1.0  # Specimen thickness (mm)

Load results#

Once the simulation finishes, the results are loaded from the results folder. The AllResults class takes the folder path as an argument and stores all the results, including logs, energy, convergence, and DOF files. Note that it is possible to load results from other results folders to compare results. It is also possible to define a custom label and color to automate plot labels.

results_pff = pd.read_csv("../Phase_Field_Central_Cracked/results_2_a03_l2/results.pff", delimiter="\t", comment="#", header=0)
results_pff_bourdin = pd.read_csv("../Phase_Field_Central_Cracked/results_2_a03_l2/results_corrected_bourdin.pff", delimiter="\t", comment="#", header=0)
results_pff_geometry = pd.read_csv("../Phase_Field_Central_Cracked/results_2_a03_l2/results_corrected_geometry.pff", delimiter="\t", comment="#", header=0)
label_2 = r"$a_0=0.3$ mm, $l=l_2$"
label_2_a = r"$a_0=0.3$ mm"
label_2_l = r"$l_2=0.0025$ mm"
color_2 = pcfg.color_orangered
a02 = 0.3

From Linear elastic fracture mechanics theory LEFM: Center-Cracked Specimen

results_lefm =  pd.read_csv("../LEFM/results_central_cracked/a0_03.lefm_problem", delimiter="\t", comment="#", header=0)
LABEL_LEFM = r"LEFM"
color_var = pcfg.color_black

From Linear elastic fracture mechanics theory LEFM: Center-Cracked Specimen

SCHEME_3 = np.loadtxt("../LEFM/results_central_cracked/center_cracked.lefm", delimiter="\t", skiprows=1)
a_lefm = SCHEME_3[:,0]
k_lefm = 1/SCHEME_3[:,2]
c_lefm = SCHEME_3[:,2]
dcda_lefm = SCHEME_3[:,3]
color_lefm = pcfg.color_black
pc_lefm = np.sqrt(2*B*Gc/(dcda_lefm))


markevery_2 = max(1, len(results_pff["displacement"])//20)

From FEM elastic force controlled simulation Force Controlled Center Cracked Specimen

force_control = pd.read_csv("../Elasticity/results_center_cracked_force_control/results.elasticity", delimiter="\t", comment="#", header=0)
LABEL_FORCE = r"Force-controlled (FEM)"
a_forc = force_control["crack_length"]
k_forc = force_control["stiffness"]
c_forc = 1/k_forc
dCda_forc = np.gradient(c_forc, a_forc)
pc_forc = np.sqrt(2*B*Gc/(0.5*dCda_forc))
markevery_forc =  max(1, len(a_forc)//10)

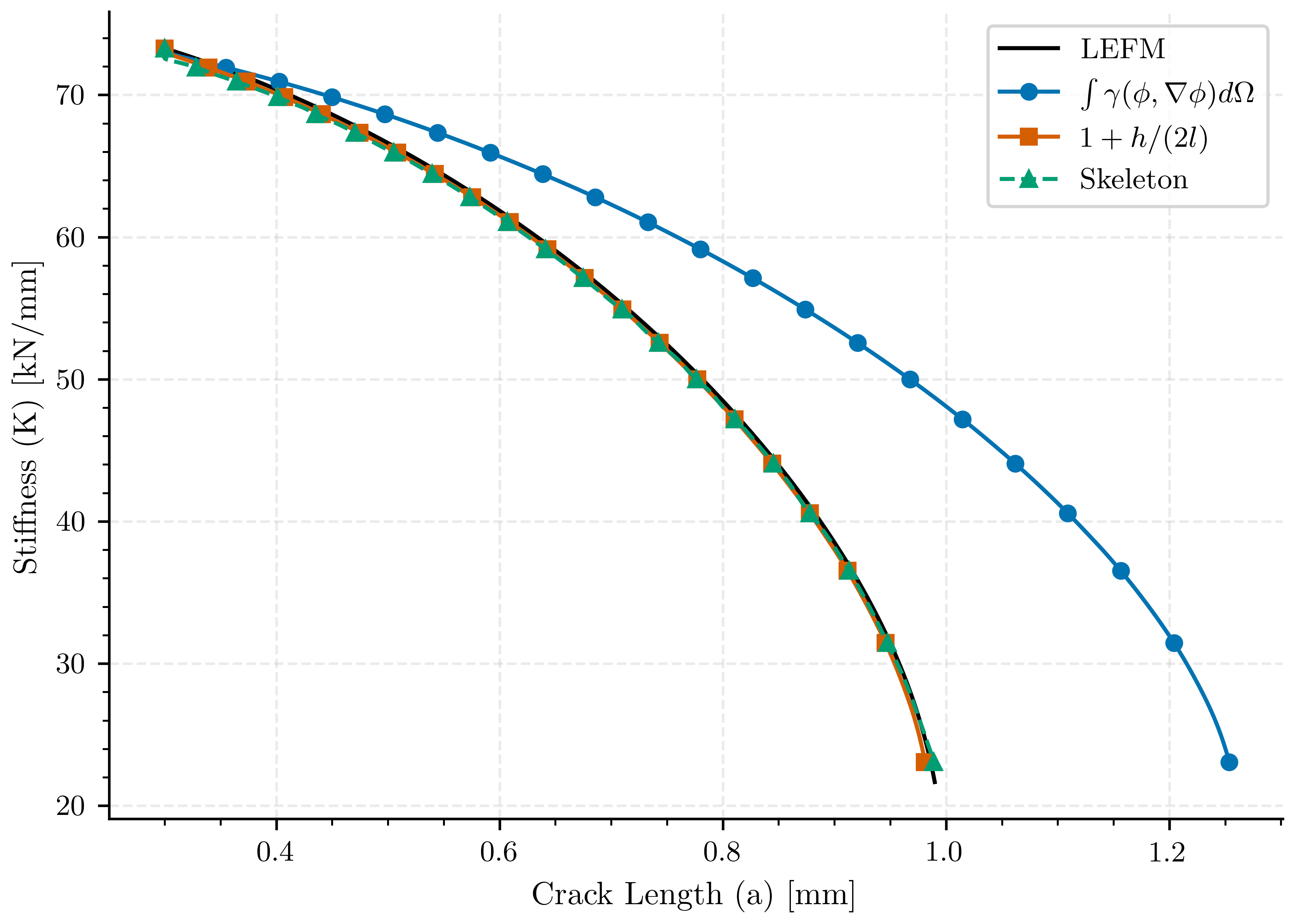

Plot: Gc-Corrected Crack Surface Area vs Stiffness#

This plot demonstrates the improved alignment between phase-field predictions and LEFM theory when applying the Gc-based crack surface correction method. The gamma_corrected_Gc value adjusts the raw crack surface area to account for the diffuse nature of the phase-field representation.

Key observations: 1. Corrected results align much better with the LEFM reference curve 2. Both length scales (l1 and l2) produce similar results after correction 3. This confirms that phase-field models can accurately predict structural

stiffness for varying crack lengths when properly calibrated

fig, ax_reaction = plt.subplots()

# LEFM reference
ax_reaction.plot(results_lefm["a"], results_lefm["P"]/results_lefm["u"], color=pcfg.color_black, linestyle='-', label=LABEL_LEFM)

ax_reaction.plot(results_pff["gamma"], results_pff["stiffness"], color=pcfg.color_blue, linestyle='-', label=r"$\int \gamma(\phi, \nabla \phi) d\Omega$", markevery=markevery_2, marker='o')
ax_reaction.plot(results_pff_bourdin["gamma"], results_pff_bourdin["stiffness"], color=pcfg.color_orangered, linestyle='-', label=r"$1+h/(2l)$", markevery=markevery_2, marker='s')
ax_reaction.plot(results_pff_geometry["gamma"], results_pff_geometry["stiffness"], color=pcfg.color_green, linestyle='--', label=r"Skeleton", markevery=markevery_2, marker='^')

ax_reaction.set_xlabel(pcfg.crack_length_label)
ax_reaction.set_ylabel(pcfg.stiffness_label)
ax_reaction.legend()

plt.savefig(os.path.join(results_folder, "gamma_compare_vs_k"))
plot compare fatigue

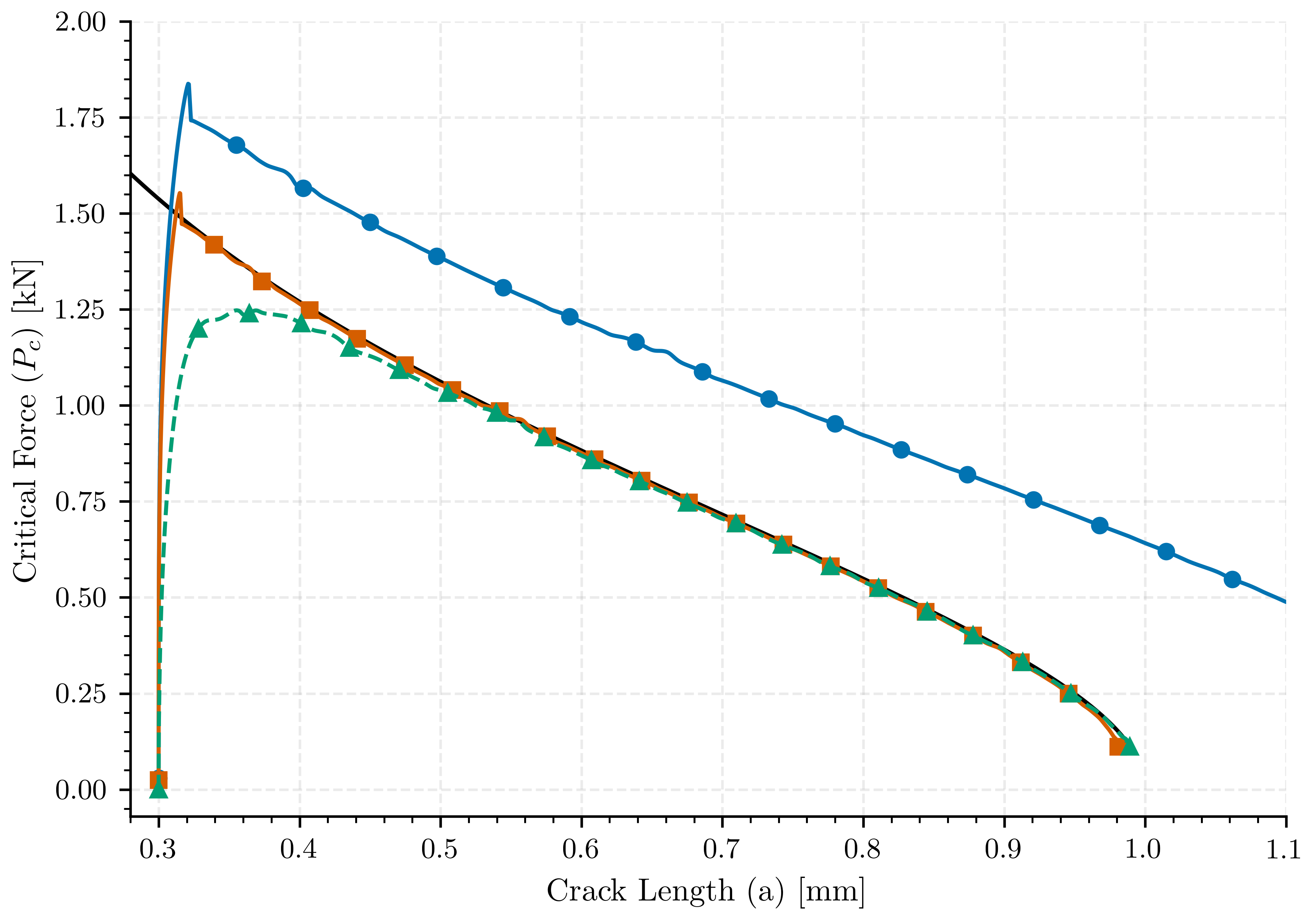

Crack length vs stiffness#

The stiffness as function of crack length is plotted for the three methods.

fig, ax0 = plt.subplots()

ax0.plot(a_lefm, pc_lefm, color=pcfg.color_black, linestyle='-', label=LABEL_LEFM)

ax_reaction.plot(a_lefm, k_lefm, color=pcfg.color_black, linestyle='-', label=LABEL_LEFM)

ax0.plot(results_pff["gamma"], np.sqrt(2*2*B*Gc/results_pff["dCda"]),  color=pcfg.color_blue, linestyle='-', label=pcfg.gamma_ref_label, markevery=markevery_2, marker='o')
ax0.plot(results_pff_bourdin["gamma"], np.sqrt(2*2*B*Gc/results_pff_bourdin["dCda"]), color=pcfg.color_orangered, linestyle='-', label=pcfg.gamma_bourdin_label, markevery=markevery_2, marker='s')
ax0.plot(results_pff_geometry["gamma"], np.sqrt(2*2*B*Gc/results_pff_geometry["dCda"]),  color=pcfg.color_green, linestyle='--', label=pcfg.gamma_geometry_label, markevery=markevery_2, marker='^')

ax0.set_xlim(left=0.28, right=1.1)
ax0.set_ylim(bottom=-0.07, top=2.0)
# Enhance plot aesthetics
ax0.set_xlabel(pcfg.crack_length_label)
ax0.set_ylabel(pcfg.critical_force_label)
# ax0.legend()

# Save the figure
plt.savefig(os.path.join(results_folder, "critical_force_vs_crack_length_pff"))
plot compare fatigue
/home/docs/checkouts/readthedocs.org/user_builds/phasefieldfatigue/conda/stable/lib/python3.10/site-packages/pandas/core/arraylike.py:399: RuntimeWarning: invalid value encountered in sqrt
  result = getattr(ufunc, method)(*inputs, **kwargs)

Fatigue#

Once the compliance curves are obtained, it is possible to calculate the fatigue lives from the compliance respect the crack area for the different methods. In this case the fatigue analysis is performed for a crack that goes from an initial crack length value_1 to a final crack length value_2.

def slice_array_by_values(a, value_1, value_2):
    """
    Returns a slice of the array `a` between the indices of the nearest values to `value_1` and `value_2`.

    Parameters:
    a (numpy.ndarray): The input array.
    value_1 (float): The first value to find in the array.
    value_2 (float): The second value to find in the array.

    Returns:
    numpy.ndarray: A new array sliced between the indices of the nearest values to `value_1` and `value_2`.
    """
    # Find the indices of the nearest values
    index_1 = (np.abs(a - value_1)).argmin()
    index_2 = (np.abs(a - value_2)).argmin()

    # Ensure index_1 is less than index_2
    if index_1 > index_2:
        index_1, index_2 = index_2, index_1

    # Return the sliced array
    return index_1, index_2 + 1

Ni = 0.0
AP = 33.0

Slice the arrays to obtain the fatigue region

a0 = 0.4
af = 1.2

# i_o_lefm, i_f_lefm = slice_array_by_values(results_lefm['a'],  a0, max(results_lefm['a']))
# a_fatigue_lefm, c_fatigue_lefm = results_lefm['a'][i_o_lefm:i_f_lefm], results_lefm['gamma'][i_o_lefm:i_f_lefm]
# dCda_fatigue_lefm = 2*results_lefm['dCda'][i_o_lefm:i_f_lefm]

solution_lefm = np.loadtxt("../LEFM/results_central_cracked/a_04_099.lefm_fatigue", skiprows=1)


i_o_gamma, i_f_gamma = slice_array_by_values(results_pff["gamma"],  a0, af)
a_fatigue_gamma, c_fatigue_gamma = results_pff["gamma"][i_o_gamma:i_f_gamma], results_pff["gamma"][i_o_gamma:i_f_gamma]
dCda_fatigue_gamma = 0.5*results_pff["dCda"][i_o_gamma:i_f_gamma]
# dCda_fatigue_gamma = np.gradient(simulation_2["compliance"][i_o_gamma:i_f_gamma], 2*simulation_2["gamma"][i_o_gamma:i_f_gamma])


i_o_bourdin, i_f_bourdin = slice_array_by_values(results_pff_bourdin["gamma"],  a0, af)
a_fatigue_bourdin, c_fatigue_bourdin = results_pff_bourdin["gamma"][i_o_bourdin:i_f_bourdin], results_pff_bourdin["gamma"][i_o_bourdin:i_f_bourdin]
dCda_fatigue_bourdin = 0.5*results_pff_bourdin["dCda"][i_o_bourdin:i_f_bourdin]
# dCda_fatigue_bourdin = np.gradient(simulation_2_bourdin["compliance"][i_o_bourdin:i_f_bourdin], 2*simulation_2_bourdin["gamma"][i_o_bourdin:i_f_bourdin])

i_o_geometry, i_f_geometry = slice_array_by_values(results_pff_geometry["gamma"],  a0, af)
a_fatigue_geometry, c_fatigue_geometry = results_pff_geometry["gamma"][i_o_geometry:i_f_geometry], results_pff_geometry["gamma"][i_o_geometry:i_f_geometry]
dCda_fatigue_geometry = 0.5*results_pff_geometry["dCda"][i_o_geometry:i_f_geometry]
dCda_fatigue_geometry2 = np.gradient(results_pff_geometry["compliance"][i_o_geometry:i_f_geometry], 2*results_pff_geometry["gamma"][i_o_geometry:i_f_geometry])

i_o_force, i_f_force = slice_array_by_values(force_control["crack_length"],  a0, af)
a_fatigue_force, c_fatigue_force = force_control["crack_length"][i_o_force:i_f_force], force_control["stiffness"][i_o_force:i_f_force]

dCda_fatigue_force = np.gradient(1/force_control["stiffness"][i_o_force:i_f_force], 2*force_control["crack_length"][i_o_force:i_f_force])



from scipy.integrate import cumulative_trapezoid, cumulative_simpson

Nf_dCda_gamma = Ni + 1/(Cparis * (Ep/(2*B))**(m/2) * AP**m)*cumulative_trapezoid(1/(dCda_fatigue_gamma)**(m/2), a_fatigue_gamma, initial=0)
Nf_dCda_bourdin = Ni + 1/(Cparis * (Ep/(2*B))**(m/2) * AP**m)*cumulative_trapezoid(1/(dCda_fatigue_bourdin)**(m/2), a_fatigue_bourdin, initial=0)
Nf_dCda_geometry = Ni + 1/(Cparis * (Ep/(2*B))**(m/2) * AP**m)*cumulative_trapezoid(1/(dCda_fatigue_geometry)**(m/2), a_fatigue_geometry, initial=0)

Nf_dCda_force = Ni + 1/(Cparis * (Ep/(2*B))**(m/2) * AP**m)*cumulative_trapezoid(1/(dCda_fatigue_force)**(m/2), a_fatigue_force, initial=0)

Crack length vs stiffness#

# fig, ax4 = plt.subplots()
# ax4.plot(a_fatigue_lefm, dCda_fatigue_lefm, color=COLOR_LEFM, linestyle='-', marker='^', label=LABEL_LEFM, markevery=markevery_fatigue_lefm)

# # ax4.plot(a_fatigue_disp, dCda_fatigue_disp, color=COLOR_DISPLACEMENT, linestyle='-', marker='o', label=LABEL_DISPLACEMENT, markevery=markevery_fatigue_disp)
# ax4.plot(a_fatigue_forc, dCda_fatigue_forc, color=COLOR_FORCE, linestyle='--', marker='s', label=LABEL_FORCE, markevery=markevery_fatigue_forc)

# ax4.plot(a_fatigue_phas, dCda_fatigue_phas, color=COLOR_PHASEFIELD, linestyle='--', marker='D', label=r"Phase-field", markevery=markevery_phas)
# ax4.plot(a_fatigue_gc, dCda_fatigue_gc, color=COLOR_PHASEFIELD, linestyle='--', marker='D', label=r"Phase-field Gc", markevery=markevery_phas)

# # Enhance plot aesthetics
# ax4.set_xlabel(pcfg.crack_length_label)
# ax4.set_ylabel(pcfg.dCda_label)
# ax4.legend()
# plt.savefig(os.path.join(results_folder,"compare_dCda_phase_field"))

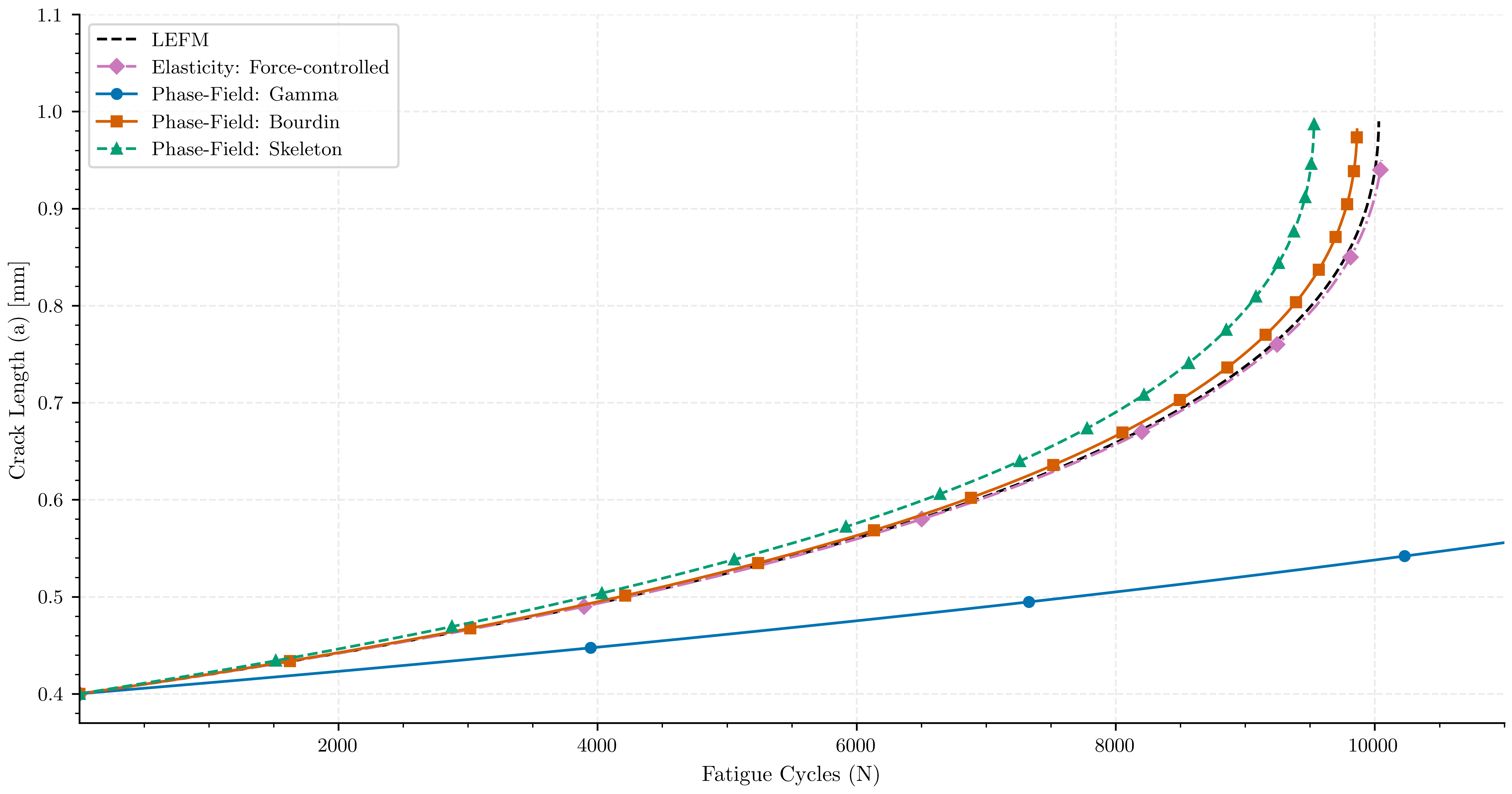

Crack length vs number of cycles#

fig, ax5 = plt.subplots(figsize=(11.69, 5.85))
# ax5.plot(Nf_dCda_3, a_fatigue_lefm, linestyle='-', marker='^', label=LABEL_LEFM, markevery=markevery_fatigue_lefm)


LABEL_FORCE = r"Elasticity: Force-controlled"
ax5.plot(solution_lefm[:, 0], solution_lefm[:, 1], linestyle='--', color=pcfg.color_black, label="LEFM")
ax5.plot(Nf_dCda_force, a_fatigue_force,  color=pcfg.color_purple, linestyle='-.', marker='D', label=LABEL_FORCE, markevery=markevery_forc)


ax5.plot(Nf_dCda_gamma, a_fatigue_gamma,  color=pcfg.color_blue, linestyle='-', label=r"Phase-Field: Gamma", markevery=markevery_2, marker='o')
ax5.plot(Nf_dCda_bourdin, a_fatigue_bourdin, color=pcfg.color_orangered, linestyle='-', label=r"Phase-Field: Bourdin", markevery=markevery_2, marker='s')
ax5.plot(Nf_dCda_geometry, a_fatigue_geometry,  color=pcfg.color_green, linestyle='--', label=r"Phase-Field: Skeleton", markevery=markevery_2, marker='^')



ax5.set_xlim(left=0.28, right=11000)
ax5.set_ylim(bottom= 0.37, top=1.1)
# Enhance plot aesthetics
ax5.set_ylabel(pcfg.crack_length_label)
ax5.set_xlabel(pcfg.cycles_label)
ax5.legend()
plt.savefig(os.path.join(results_folder, "compare_paris_law_phase_field"))

plt.show()
plot compare fatigue

Total running time of the script: (0 minutes 3.084 seconds)
