Compact Tension Specimen: Fracture and Fatigue Analysis#
This script performs a detailed fracture and fatigue analysis of an ASTM E-399-72 compact tension (CT) specimen using principles of Linear Elastic Fracture Mechanics (LEFM). It serves as a comprehensive educational and research tool, demonstrating the theoretical and numerical workflow from fundamental equations to result visualization.
Analysis Workflow:
Parameter Definition: Establishes material properties (e.g., Young’s modulus, fracture toughness) and specimen geometry based on the ASTM standard.
Geometric Factor Calculation: Implements the standard polynomial function for the dimensionless geometry factor, \(f(a/W)\).
Compliance Calculation: Numerically computes the specimen’s compliance, \(C(a)\), by integrating the energy release rate, which is derived from the geometry factor. This step is crucial for linking stress-based and energy-based fracture criteria.
Fatigue Life Analysis: * Calculates the stress intensity factor range, \(\Delta K\), using two
equivalent LEFM methods: a. Direct Method: Using the standard geometry factor, \(f(a/W)\). b. Compliance Method: Using the derivative of compliance, \(dC/da\).
Compares the results of both methods to verify the theoretical consistency.
Integrates Paris’ Law, \(da/dN = C_{\text{Paris}}(\Delta K)^n\), to predict the fatigue life, plotting the crack length as a function of the number of cycles.
Verification and Visualization: Generates plots to compare the different calculation methods and validates them against external experimental data.
Theoretical Background:
The analysis is based on the following key LEFM equations, which are also detailed in the accompanying scientific paper:
Stress Intensity Factor (SIF): .. math:
K_I = \frac{P}{B\sqrt{W}} f\left(\frac{a}{W}\right)
Energy Release Rate and Compliance: .. math:
G = \frac{P^2}{2B} \frac{dC}{da} = \frac{K_I^2}{E'}
Fatigue Crack Growth (Paris’ Law): .. math:
\frac{da}{dN} = C_{\text{Paris}} (\Delta K)^n
This script demonstrates how these foundational concepts are applied to a standard test case, providing a bridge between theory and practical implementation.
Import necessary libraries#
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
import os
import shutil
import sys
sys.path.insert(0, os.path.abspath('../../'))
plt.style.use('../../graph.mplstyle')
import plot_config as pcfg

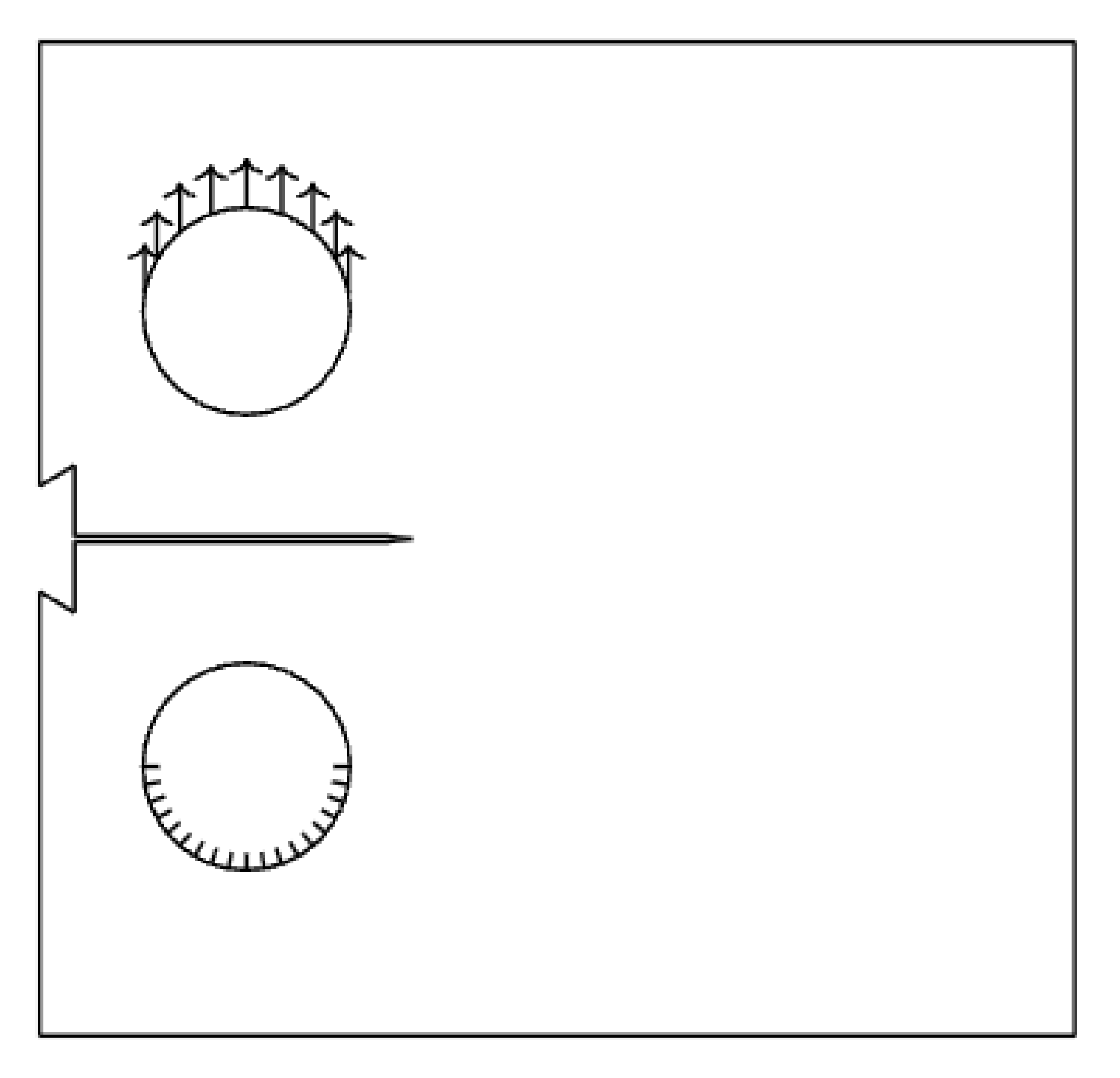

img = mpimg.imread('images/compact_specimen.png') # or .jpg, .tif, etc.
plt.imshow(img)
plt.axis('off')
results_folder = "results_compact_specimen"
if os.path.exists(results_folder):
shutil.rmtree(results_folder)
os.makedirs(results_folder, exist_ok=True)
# Colors reference from plot_config
color_main = pcfg.color_blue
color_secondary = pcfg.color_orangered
color_tertiary = pcfg.color_gold
color_quaternary = pcfg.color_green
color_analytical = pcfg.color_black
Parameters definition#
Define material and specimen parameters
E = 211 # Young's modulus (kN/mm^2)
nu = 0.3 # Poisson's ratio (-)
Gc = 0.073 # Critical strain energy release rate (kN/mm)
m = 2.08 # Paris' Law exponent (-)
Cparis = 1.615*10**(-8) * 10**(3*m/2) # Paris' Law constant [mm^((2+3m)/2) / (cycle kN^m)]
Ep = E / (1.0 - nu**2) # Plane strain modulus (kN/mm^2)
# KIC_MPa_sqrtm = 130.0 # Fracture toughness in standard units (MPa√m)
# # Convert K_IC to consistent analysis units: kN/mm^(3/2)
# KIC = KIC_MPa_sqrtm * (1e-3) * np.sqrt(1000)
# # G_c is the energy required to create a unit area of crack surface
# Gc = KIC**2 / Ep
# %
# Define specimen geometry
b = 40.0 # Characteristic width of the specimen (mm)
B = 3.2 # Thickness (mm)
# %
# Crack length range and increment
a0 = 0.2 * b # Initial crack length (mm)
af = 0.95 * b # Final crack length (mm)
da = 0.0001 * b # Small increment for high-accuracy numerical integration (mm)
a = np.arange(a0, af, da) # Array of crack lengths (mm)
3. Geometric Factor and Compliance Calculation#
This section defines the geometry factor function and uses it to compute the specimen’s compliance via numerical integration.
def geometry_factor(a, b):
"""
Calculates the dimensionless geometry factor f(a/b) for an ASTM E-399 CT
specimen. This polynomial expression is specified in the standard.
"""
x = a / b
numerator = (2 + x)
denominator = (1 - x)**(1.5)
polynomial = 0.886 + 4.64 * x - 13.32 * x**2 + 14.72 * x**3 - 5.6 * x**4
return (numerator / denominator) * polynomial
# Calculate the geometric factor for the entire range of crack lengths
f_geometric = geometry_factor(a, b)
Calculate the critical force#
Critical force (\(P_c\)) based on LEFM
P_c = B * np.sqrt(b) * np.sqrt(Ep * Gc) / f_geometric
Compliance and stiffness calculations#
Compliance (C) and stiffness (K) are calculated using numerical integration The compliance of the specimen witout crack is given by:
K0 = 2.232753e+01 # Initial stiffness (kN/mm)
C0 = 1.0/K0
# Define integration function using trapezoidal or Simpson's rule
from scipy.integrate import cumulative_trapezoid, cumulative_simpson
# Calculate compliance (C) and stiffness (K)
C = C0 / B * (1 + 2.0 / (C0 * Ep * b) * cumulative_trapezoid(f_geometric**2, a, initial=0))
K = 1.0 / C # Stiffness is inverse of compliance

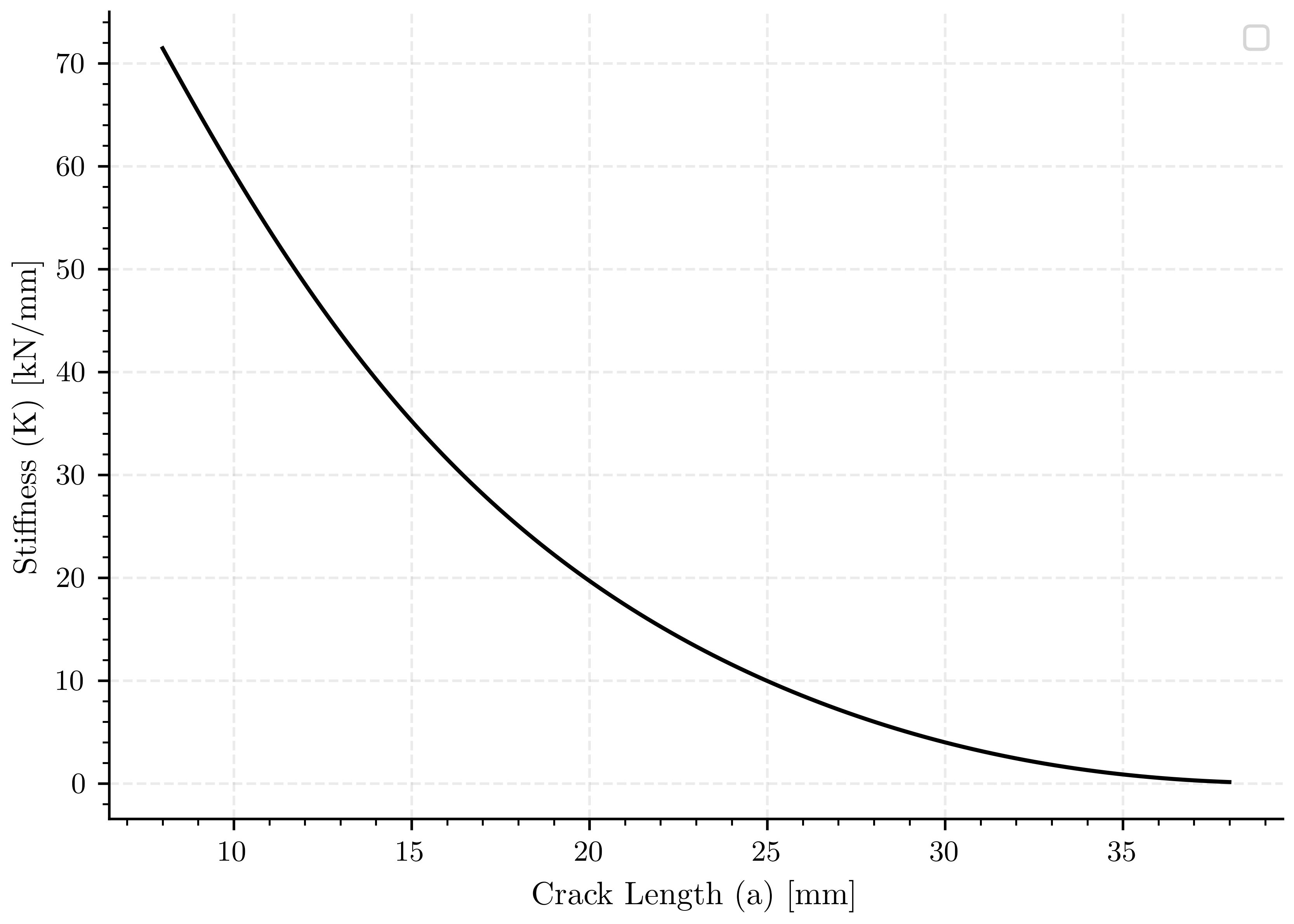

Plot: Stiffness (\(K\)) vs. crack length (\(a\))#
fig, ax1 = plt.subplots()
ax1.plot(a, K, color=color_analytical, linestyle='-') # Plot K vs. a
ax1.set_xlabel(pcfg.crack_length_label) # Label for crack length
ax1.set_ylabel(pcfg.stiffness_label) # Label for stiffness
ax1.legend()
/home/docs/checkouts/readthedocs.org/user_builds/phasefieldfatigue/checkouts/stable/examples/LEFM/plot_compact_specimen.py:172: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
ax1.legend()
<matplotlib.legend.Legend object at 0x734c65998940>

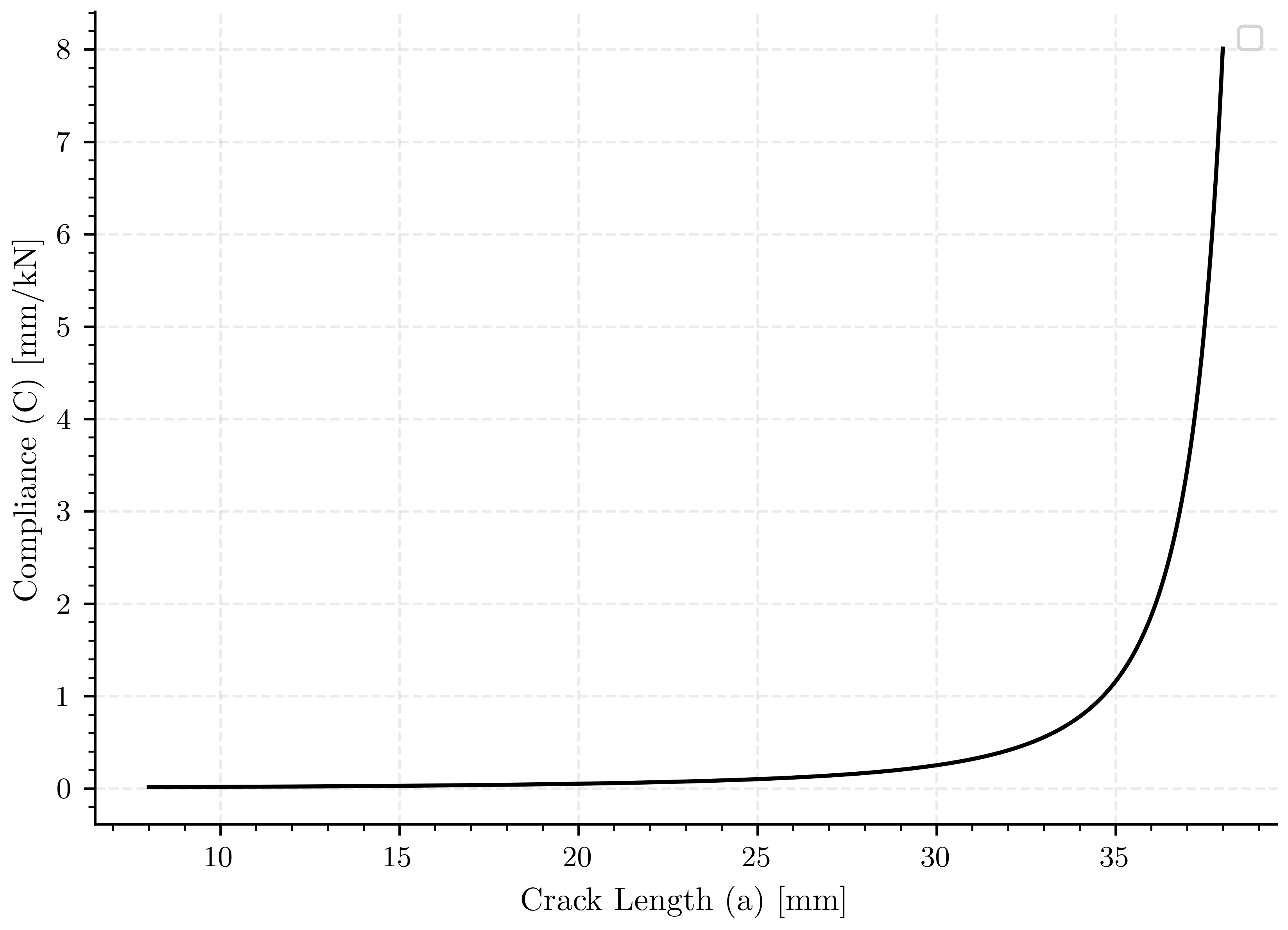

Plot: Compliance (\(C\)) vs. crack length (\(a\))#
fig, ax1 = plt.subplots()
ax1.plot(a, C, color=color_analytical, linestyle='-')
ax1.set_xlabel(pcfg.crack_length_label)
ax1.set_ylabel(pcfg.compliance_label)
ax1.legend()
/home/docs/checkouts/readthedocs.org/user_builds/phasefieldfatigue/checkouts/stable/examples/LEFM/plot_compact_specimen.py:183: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
ax1.legend()
<matplotlib.legend.Legend object at 0x734c635bdf30>

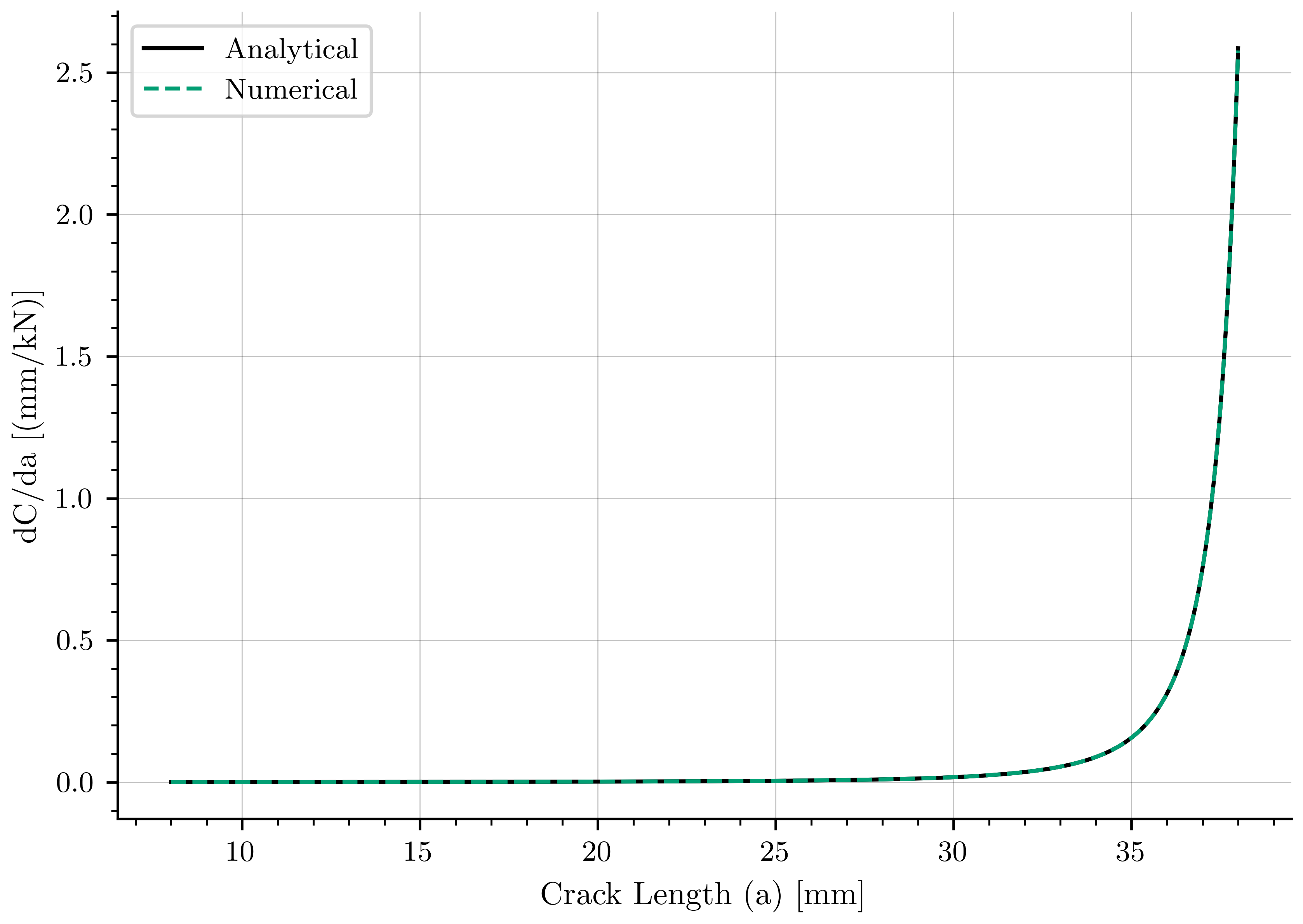

dC/da term#
This term is calculated as the derivative of compliance with respect to crack length note that the crack prpagates symetrically yo the right and the left, so we use 2*a for the derivative.
dCda_numerical = np.gradient(C, B*a)
# %
# Also is possible to obtain the relation directly by the following formula
dCda = 2*Gc / P_c**2
# Simple test to verify that the numerical and analytical dC/da are close
try:
# Use a relative tolerance of 5% because numerical differentiation can
# have inaccuracies.
np.testing.assert_allclose(dCda_numerical, dCda, rtol=1e-2)
print("Validation successful: Numerical dC/da matches analytical dC/da"
" within tolerance.")
except AssertionError as e:
print("Validation failed: Numerical and analytical dC/da do not match."
f"\n{e}")
fig, ax1 = plt.subplots()
ax1.plot(a, dCda, color=color_analytical, linestyle='-', label='Analytical') # Plot analytical dC/da
ax1.plot(a, dCda_numerical, color=color_quaternary, linestyle='--', label='Numerical') # Plot numerical dC/da
ax1.grid(color='k', linestyle='-', linewidth=0.3)
ax1.set_xlabel(pcfg.crack_length_label) # Label for crack length
ax1.set_ylabel(pcfg.dCda_label)
ax1.legend()
Validation successful: Numerical dC/da matches analytical dC/da within tolerance.
<matplotlib.legend.Legend object at 0x734c6379d1b0>

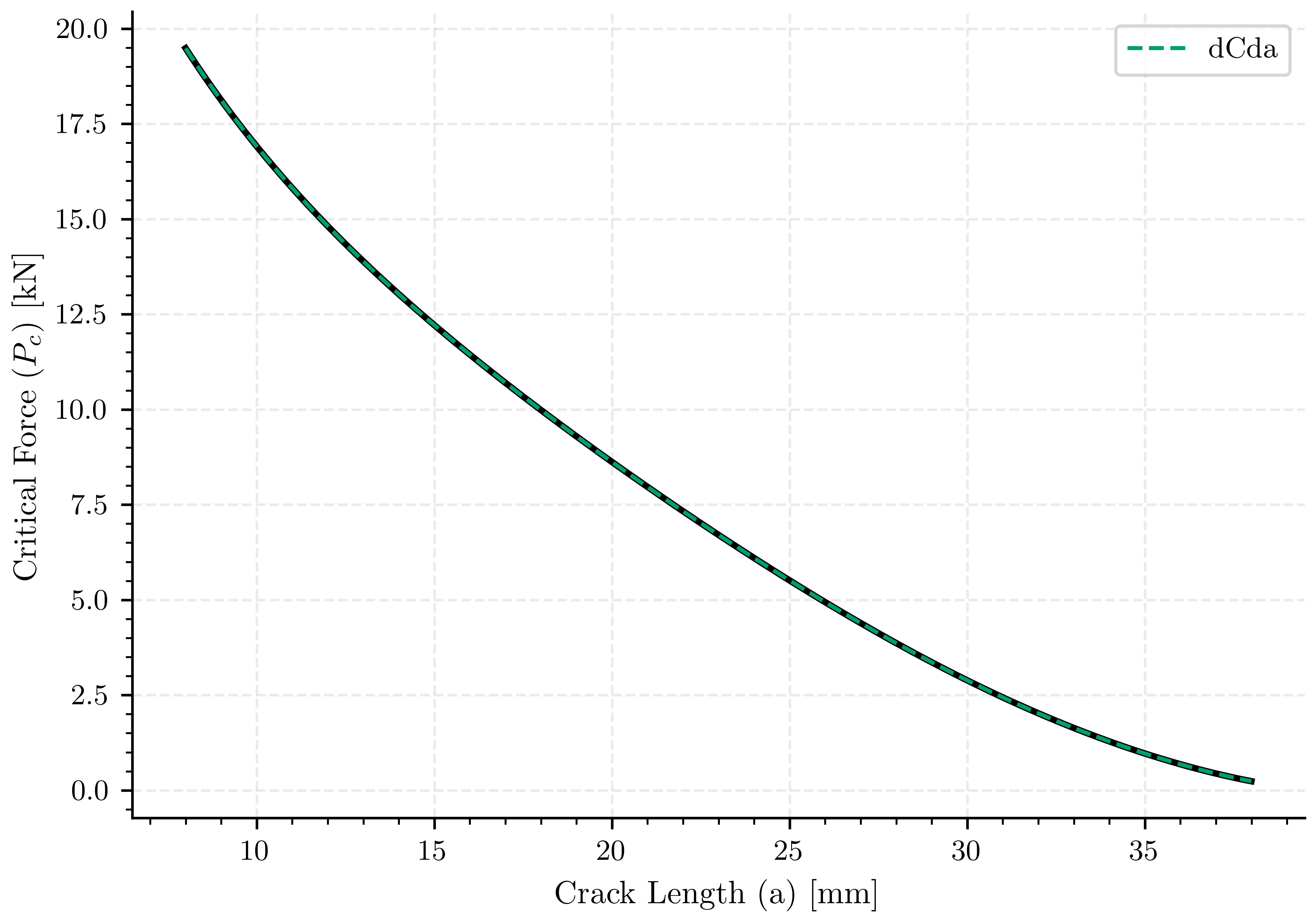

Plot: Critical force (\(P_c\)) vs. crack length (\(a\)) plain strain B=1#
fig, ax1 = plt.subplots()
ax1.plot(a, P_c, color=color_analytical, linestyle='-', linewidth=2.0) # Plot P_c vs. a
ax1.plot(a, np.sqrt(2.0 * Gc / dCda), color=color_quaternary, linestyle='--', label='dCda')
ax1.set_xlabel(pcfg.crack_length_label) # Label for crack length
ax1.set_ylabel(pcfg.critical_force_label) # Label for critical force
ax1.legend()
<matplotlib.legend.Legend object at 0x734c6350cfa0>
Save results to file#
results = np.column_stack((a, K, P_c, dCda))
header = "a\tK\tPc\tdCda"
np.savetxt(os.path.join(results_folder, "results.lefm"),
results, fmt="%.6e", delimiter="\t", header=header, comments="")
Specific curves#
def get_u_P(ap0, a, P_c, C):
index_ap0 = np.argmin(np.abs(a - ap0))
P_c_a0 = P_c[index_ap0]
u_c_a0 = P_c_a0 * C[index_ap0]
u = P_c[index_ap0:] * C[index_ap0:]
P = P_c[index_ap0:]
a = a[index_ap0:]
u0 = np.linspace(0, u[0], 1000)
u = np.concatenate((u0, u))
P = np.concatenate((u0 / C[index_ap0], P))
a = np.concatenate((u0 * 0 + a[0], a))
W = Gc * (a - ap0)
C = u / P
E = P**2 * C / 2
# E = P*u / 2
return u, P, a, W, E, u_c_a0, P_c_a0
# %
# Define specific crack length points for the analysis
ap0_points = np.array([0.2*b, 0.5*b, 0.7*b]) # Specific crack length points
ap0_colors = np.array(["red", "blue", "green"]) # Colors for these points in plots
ap0_style = ["-", "--", "--"] # Line styles for these points
ap0_label = np.array([f"$a_0$={ap0_points[0]} mm", f"$a_0$={ap0_points[1]} mm ", f"$a_0$={ap0_points[2]} mm"]) # Labels for legend
index_ap0 = np.zeros(len(ap0_points), dtype=int) # Indices of these points in the crack length array
# Find the indices of the specific crack length points in the array
i = 0
for a_i in ap0_points:
index_ap0[i] = np.argmin(np.abs(a - a_i)) # Find the closest index
i += 1
u1, P1, a1, W1, E1, u_c_a01, P_c_a01 = get_u_P(ap0_points[0], a, P_c, C)
u2, P2, a2, W2, E2, u_c_a02, P_c_a02 = get_u_P(ap0_points[1], a, P_c, C)
u3, P3, a3, W3, E3, u_c_a03, P_c_a03 = get_u_P(ap0_points[2], a, P_c, C)
header_curves = "a\tu\tP\tstrain_energy\tfracture_energy"
results_1 = np.column_stack((a1, u1, P1, E1, W1))
np.savetxt(
os.path.join(
results_folder,
f"a0_{str(ap0_points[0]).replace('.', '')}.lefm_problem"
),
results_1, fmt="%.6e", delimiter="\t", header=header_curves, comments=""
)
results_2 = np.column_stack((a2, u2, P2, E2, W2))
np.savetxt(
os.path.join(
results_folder,
f"a0_{str(ap0_points[1]).replace('.', '')}.lefm_problem"
),
results_2, fmt="%.6e", delimiter="\t", header=header_curves, comments=""
)
results_3 = np.column_stack((a3, u3, P3, E3, W3))
np.savetxt(
os.path.join(
results_folder,
f"a0_{str(ap0_points[2]).replace('.', '')}.lefm_problem"
),
results_3, fmt="%.6e", delimiter="\t", header=header_curves, comments=""
)
/home/docs/checkouts/readthedocs.org/user_builds/phasefieldfatigue/checkouts/stable/examples/LEFM/plot_compact_specimen.py:254: RuntimeWarning: invalid value encountered in divide
C = u / P

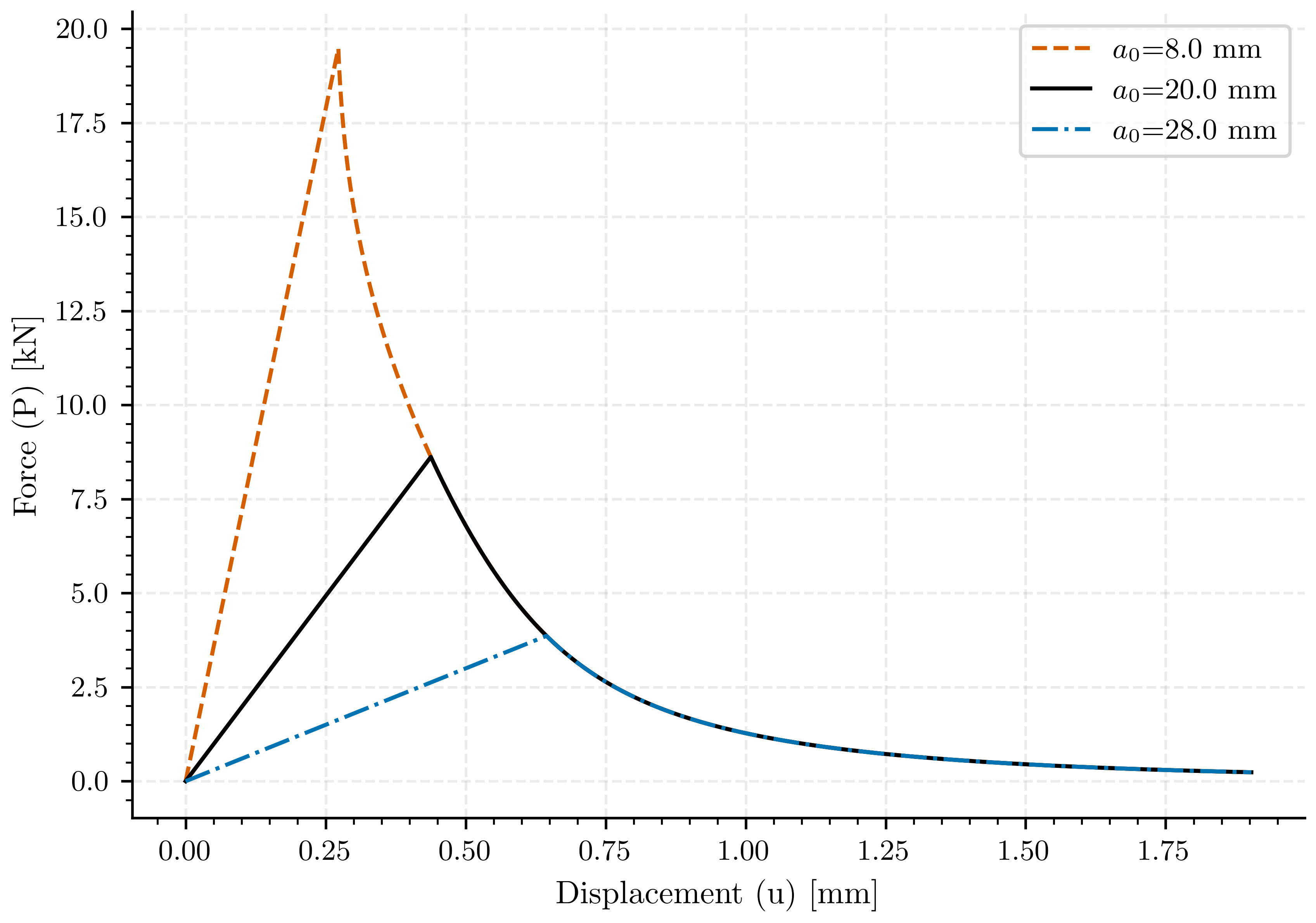

Plot: Displacement (\(u\)) vs. Force (\(P\))#
fig, ax1 = plt.subplots()
ax1.plot(u1, P1, color=color_secondary, linestyle='--', label=ap0_label[0])
ax1.plot(u2, P2, color=color_analytical, linestyle='-', label=ap0_label[1])
ax1.plot(u3, P3, color=color_main, linestyle='-.', label=ap0_label[2])
ax1.set_xlabel(pcfg.displacement_label)
ax1.set_ylabel(pcfg.force_label)
ax1.legend()
plt.show()

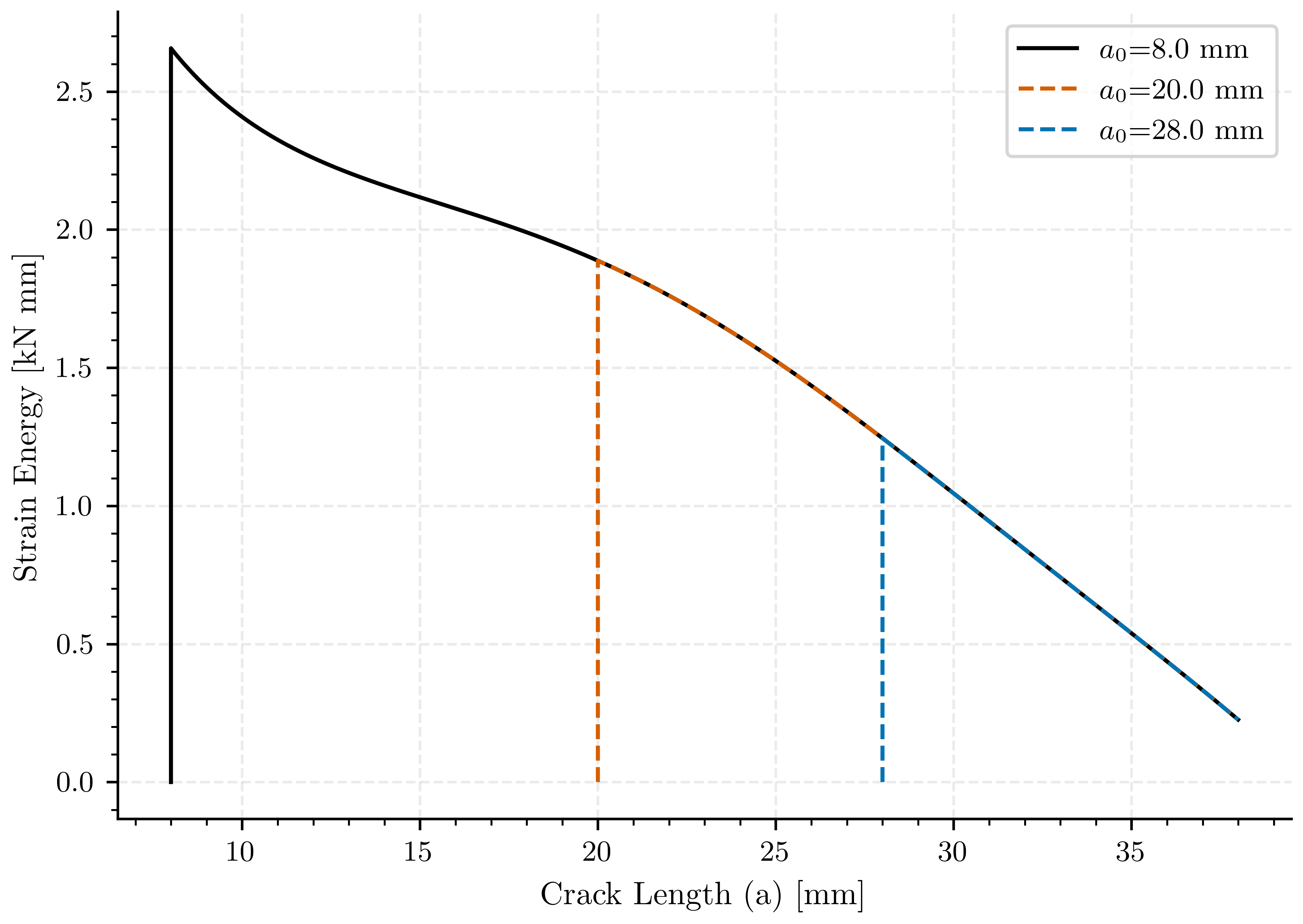

Plot: (\(a\)) vs. Energy (\(E\))#
fig, ax1 = plt.subplots()
ax1.plot(a1, E1, color=color_analytical, linestyle='-', label=ap0_label[0])
ax1.plot(a2, E2, color=color_secondary, linestyle='--', label=ap0_label[1])
ax1.plot(a3, E3, color=color_main, linestyle='--', label=ap0_label[2])
ax1.set_xlabel(pcfg.crack_length_label)
ax1.set_ylabel(pcfg.strain_energy_label)
ax1.legend()
<matplotlib.legend.Legend object at 0x734c63462d70>

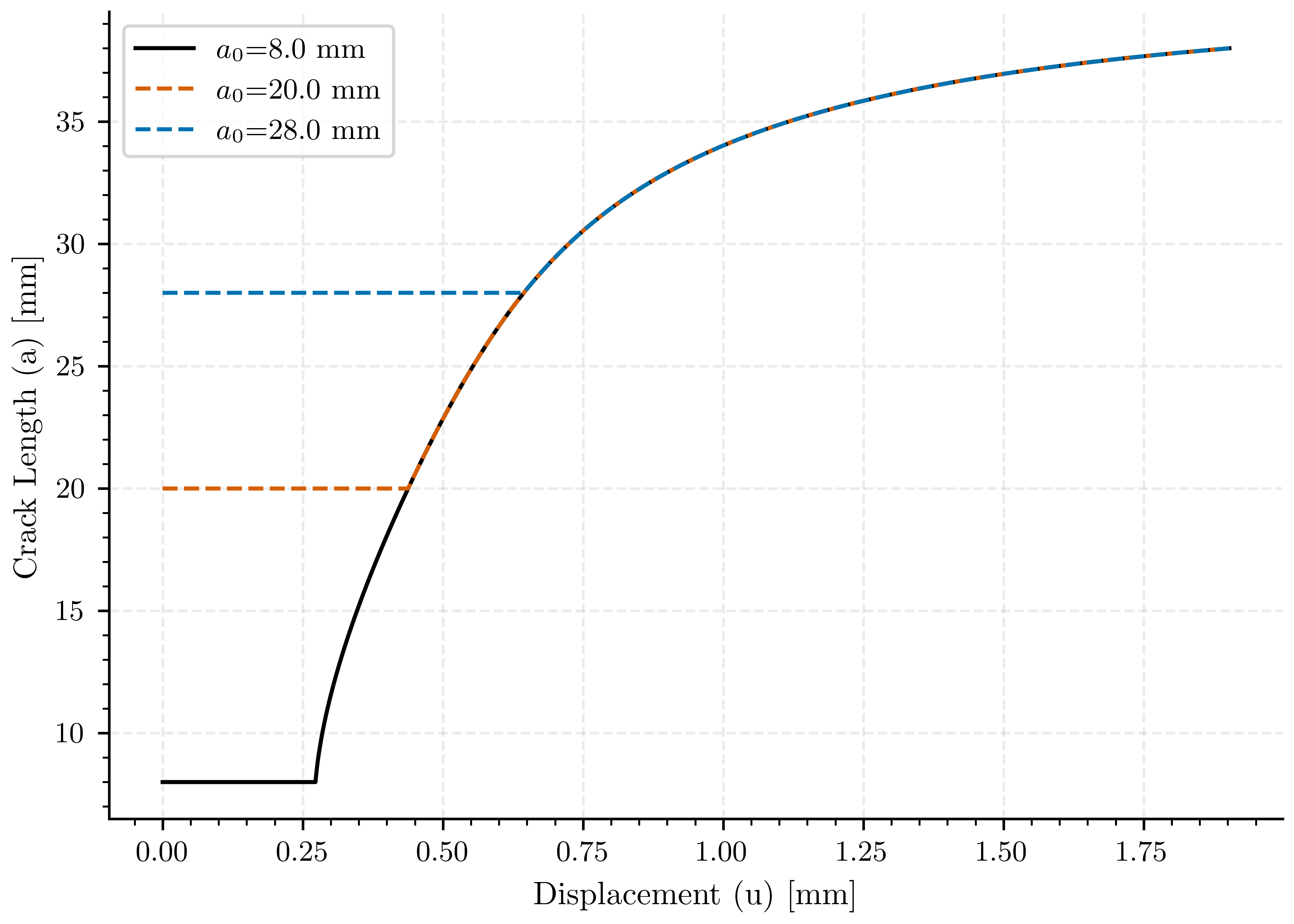

Energy calculations for a0=0.3 mm#
fig, ax1 = plt.subplots()
ax1.plot(u1, a1, color=color_analytical, linestyle='-', label=ap0_label[0])
ax1.plot(u2, a2, color=color_secondary, linestyle='--', label=ap0_label[1])
ax1.plot(u3, a3, color=color_main, linestyle='--', label=ap0_label[2])
ax1.set_xlabel(pcfg.displacement_label)
ax1.set_ylabel(pcfg.crack_length_label)
ax1.legend()
<matplotlib.legend.Legend object at 0x734c76c7a620>

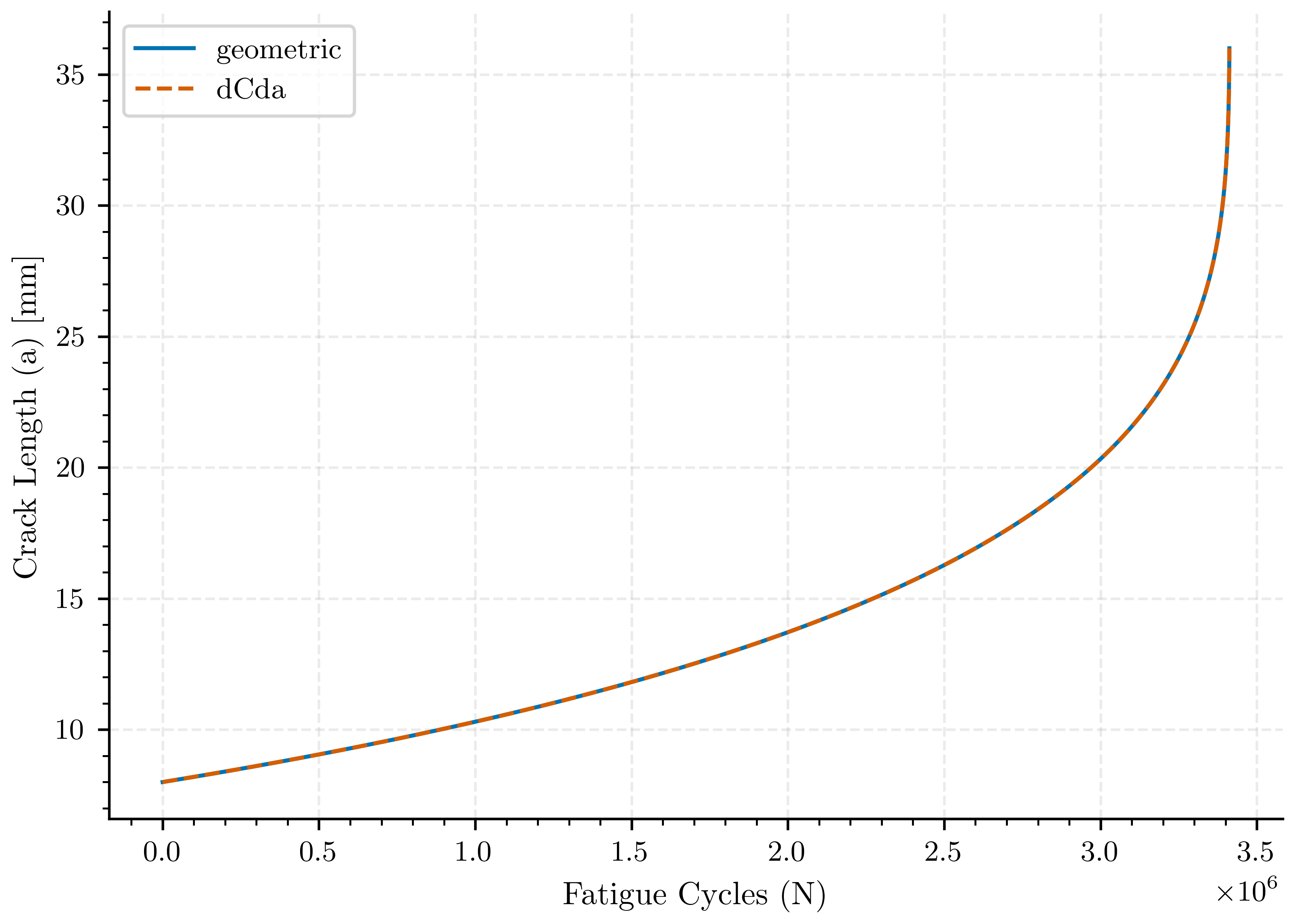

Fatigue Life Calculation and Validation#
a0_fatigue = 0.2*b # Initial crack length [mm]
af_fatigue = 0.9*b # Final crack length [mm]
To perform the fatigue analysis in that range, will be needed to tlice the arrays to obtain the values of the compliance and crack area in that range.
def slice_array_by_values(a, value_1, value_2):
"""
Returns a slice of the array `a` between the indices of the nearest values to `value_1` and `value_2`.
Parameters:
a (numpy.ndarray): The input array.
value_1 (float): The first value to find in the array.
value_2 (float): The second value to find in the array.
Returns:
numpy.ndarray: A new array sliced between the indices of the nearest values to `value_1` and `value_2`.
"""
# Find the indices of the nearest values
index_1 = (np.abs(a - value_1)).argmin()
index_2 = (np.abs(a - value_2)).argmin()
# Ensure index_1 is less than index_2
if index_1 > index_2:
index_1, index_2 = index_2, index_1
# Return the sliced array
return index_1, index_2 + 1
Slice the arrays to obtain the fatigue region
i_o_1, i_f_1 = slice_array_by_values(a, a0_fatigue, af_fatigue)
a_fatigue = a[i_o_1:i_f_1] # Crack lengths in the fatigue range
f_geometric_fatigue = f_geometric[i_o_1:i_f_1]
dCda_fatigue = dCda[i_o_1:i_f_1] # Compliance derivative in the fatigue range
# This section calculates the fatigue life (number of cycles vs. crack length)
# using two theoretically equivalent LEFM approaches:
#
# 1. Stress-Based Method: Using the geometric factor f(a/W) to find Delta_K.
# 2. Energy-Based Method: Using the compliance derivative dC/da.
#
# The results are then compared to validate the numerical implementation.
# --- Fatigue Material Properties ---
AP = 1.5 # Applied cyclic force range (Delta_P) [kN]
Ni = 0 # Initial number of cycles
# --- Method 1: Fatigue Life from Geometric Factor ---
# Calculate the stress intensity factor range (Delta_K)
AK = AP / (B * np.sqrt(b)) * f_geometric_fatigue # Stress intensity factor range
# Integrate Paris' Law: Nf = integral(1 / (C * (Delta_K)^m)) da
# For numerical stability, constant terms are pulled out of the integral.
Nf_f_geometric = Ni + 1/(Cparis * (AP/(B*np.sqrt(b)))**m) * \
cumulative_trapezoid(1/(f_geometric_fatigue**m), a_fatigue, initial=0)
# Nf_f_geometric = Ni + cumulative_trapezoid(1 / (Cparis * AK**m), a, initial=0)
# --- Method 2: Fatigue Life from Compliance Derivative (dC/da) ---
# This uses the energy-based formulation of Paris' Law.
Nf_dCda = Ni + 1 / (Cparis * (Ep / (2 * B))**(m / 2) * AP**m) * \
cumulative_trapezoid(1 / (dCda_fatigue*(B))**(m / 2), a_fatigue, initial=0)
# --- Validation Test ---
# Verify that both methods produce nearly identical results. A small tolerance
# is required to account for numerical errors from integration and differentiation.
try:
# Use a relative tolerance of 1% (rtol=1e-2).
np.testing.assert_allclose(Nf_f_geometric, Nf_dCda, rtol=1e-2)
print("Validation successful: Fatigue life calculations from geometric"
" factor and dC/da are consistent.")
except AssertionError as e:
print("Validation FAILED: The two fatigue life calculation methods do not"
f" match.\n{e}")
Validation successful: Fatigue life calculations from geometric factor and dC/da are consistent.
Plot:#
fig, ax1 = plt.subplots()
ax1.plot(Nf_f_geometric, a_fatigue, color=color_main, linestyle='-', label=r"geometric")
ax1.plot(Nf_dCda, a_fatigue, color=color_secondary, linestyle='--', label=r"dCda")
ax1.set_xlabel(pcfg.cycles_label)
ax1.set_ylabel(pcfg.crack_length_label)
ax1.legend()
plt.show()
header_fatigue = "cycles\ta"
results_fatigue = np.column_stack((Nf_dCda, a_fatigue))
np.savetxt(
os.path.join(
results_folder,
f"a_{str(a0_fatigue).replace('.', '')}_{str(af_fatigue).replace('.', '')}.lefm_fatigue"
),
results_fatigue, fmt="%.6e", delimiter="\t", header=header_fatigue, comments=""
)
Total running time of the script: (0 minutes 9.513 seconds)
